Closed Circuit Cooling Towers
Closed circuit cooling towers of the latest generation, forced draft counterflow execution. Fiberglass reinforced polyester casing, EC axial fans as standard and ultra-compact coil with a minimum refrigerant charge.

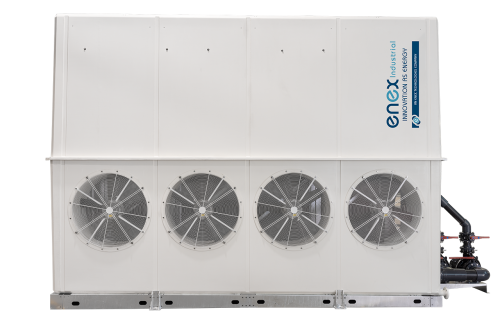

The NTC series closed circuit cooling towers are ahead of their time. They are forced draft counter current cooling towers with fiberglass reinforced polyester (GRP) casing, characteristics that ensure enormous resistance to corrosion and the highest performance.
NTC cooling towers incorporate electric motors with innovative EC technology (integrated controller) and feature a very low sound pressure level and therefore very quiet operation. EC motors have superior efficiency, exceeding IE4 requirements.
The integrated electronics of the EC motors allows variable speed control of the fan for maximum energy savings of the installation, with reduced power consumption compared to AC motors with VFD.
NTC towers are currently the most energy efficient equipment available on the market, exceeding the ErP 2023 standard.
Fans with direct drive motors eliminate possible mechanical failures of belt driven motors.
The batteries of the NTC towers are hot-dip galvanized in discontinuous process according to UNE.EN ISO 1461:2010 standard.
The air inlet is on one side only, which allows its modular implementation, optimizing the necessary floor space and the location of the silent side towards noise-sensitive areas. The fans are installed in the dry air suction section, which prevents condensation and eliminates corrosion problems and premature mechanical failures.
The unique curved geometry of the EOS droplet eliminators provides four changes in air flow direction with three impact zones and a cellular structure with overlapping sheets that retain water droplets present in the air flow, reducing drag to less than 0.001%.
The water basin with self-draining design, with two slopes on two axes towards the emptying connection, allows complete emptying. The basin is completely diaphanous, with no inaccessible areas and a large internal area, which allows easy and convenient access for inspection and cleaning.
The NTC range is designed for proper installation and operation even in environments with category C5 (maximum corrosion degree according to ISO 9223:1992 – marine or heavy industrial environment).
Features
- Maximum energy savings and low installation cost
- Axial fans with EC motors with commutated electronics as standard
- GRP (fiberglass reinforced polyester) casing
- Stainless steel screws
- Stainless steel anti-cavitation filter as standard
- Very easy access to all serviceable parts
Accessories
- Multiple independent circuits in the heat exchange coil
- Exchange coil entirely made of stainless steel, both in AISI 304L and AISI 316L quality
- Heating element installed in the recirculation water basin
- Electronic level control to replace the mechanical float valve
- E-CARE water quality control system
- Reserve pump mounted with check valve
- Customizable colour
- Signalling lights
- Ladder and perimeter walkways for maintenance, manufactured exclusively in GRP
- 5-year extended Premium warranty with 24-hour after-sales service
